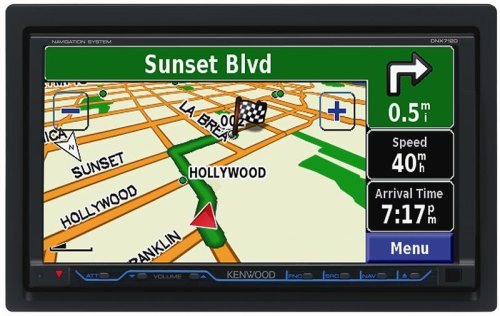

Kenwood DNX7140 6.95-Inch Wide Double-DIN In-Dash Nagivation with Built-in Bluetooth USB/iPod Direct Control/DVD Receiver

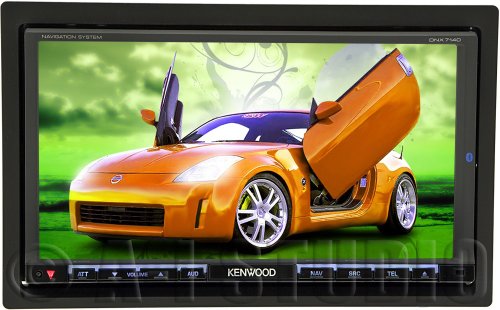

An all-in-one in-dash system with cutting-edge audio, video, and navigation technologies. Click to enlarge.

6.95-Inch Touchscreen with Variable Illumination
The DNX7140 puts intuitive control right at your fingertips with its 6.95-inch QVGA TFT Active Matrix Display and powerful, easy-to-use graphical user interface. Customize the unit's front panel illumination with the new variable illumination palette of colors--match your interior tones, dash lighting, or whatever tickles your fancy. Selectable wallpapers and customizable backgrounds offer further personalization.

Reverse Tilt Mechanism
Depending on the vehicle, in-car monitors are installed in a variety of heights and angles, and this sometimes results in reduced visibility due to reflected glare from sunlight. Kenwood's solution is the exclusive Reverse Tilt mechanism: In addition to the traditional tilt mechanism that allows the bottom of the monitor to be tilted forward over five positions, Reverse Tilt also allows the top of the monitor to tilt forward to eliminate reflected glare.

Built-In Advanced Navigation--Guidance by Garmin
This integrated advanced navi system guides you everywhere with ease and is beautifully displayed on a large 6.95-inch screen. All functions are intuitively controlled by touchscreen menus and voice guidance works over the vehicle's speaker system. There is no need to swap map discs since it comes with a built-in full-memory Garmin Navigation board that features maps of continental USA, Canada, Hawaii and Alaska. New navigation functions include:

Seamless connection with iPod video/audio.

Built-in full-memory Garmin Navigation board that features maps of Canada, continental USA, Hawaii, and Alaska. Click to enlarge.

A wide palette of colors are available using Variable Color Illumination. Click to enlarge.

Add satellite radio or HD radio with Kenwood peripherals.

Add the MSN Direct Traffic/Data Receiver for real-time traffic updates integrated with your navigation.

• Roadside Assistance
• Phone Number Search / Call (Using BT)
• Brand Icon
• Mileage Tracker

Built-In Bluetooth--Powered by Parrot
The built-in Bluetooth hands-free system enables easy, safe cellular phone communications from the car. Features include (not all features work on all phones):

• High-quality noise-cancelling microphone
• Register up to five Bluetooth phones
• Holds up to 1,000 phone numbers per registered phone
• Supports Auto Phonebook Download
• Supports A2DP Wireless Music Streaming
• Supports voice-recognition dialing
• Supports incoming/outgoing short-message service (SMS)
• Bluetooth firmware upgradeable

MSN Direct Traffic/Data Receiver Ready
Don't be late or waste your precious time and fuel stuck in traffic; use the Kenwood KNA-M100 featuring MSN Direct. Once you activate your subscription, the traffic receiver will begin to receive real-time traffic and other useful data right onto your Kenwood touchscreen, providing quick access to alternative routing using Garmin navigation.

Audio enhancement all the time
As part of the DSP for the all new Sound Excellence feature, the DNX7140 Entertainment/Navigation System includes a Space Enhancer and a new Bass Boost. Space Enhancer expands the sound field for the listener so that the audio signal can be heard clearly by the driver and front seat passenger. The new Bass Boost feature increases low-frequency output for each channel and listeners will be able to feel the more powerful sound.

Enjoy Your Favorite Media
The DNX7140 is a media powerhouse, letting you play your favorite CDs and DVDs, along with several digital audio and video formats. The unit accepts DVD, DVD+R/RW, DVD-R/RW, CD, CD-R/RW, VCD, and CD-DA discs. It plays back AAC-LC, MP3, and WMA audio files; MPEG1 and MPEG2 video files; and can display JPG images. Throw your files on a disc or a USB device and enjoy them in your vehicle wherever you are.

And, of course, you still can listen to the AM/FM radio. Use Auto Memory to automatically add stations with good reception to presets, or enter them manually. The DNX7140 displays FM radio text when available as well as traffic information, and it allows you to enter station names.

Seamless Connection with iPod Video/Audio
Connect an iPod using the optional KCA-iP301V cable to enable full video (for iPods with video capability) and/or audio control. You'll supply power to your iPod as well as charge it while you enjoy your music.

USB Direct Control
You can enjoy your favorite music, video, or images from USB devices like flash drives or MP3 players. When connecting a USB device, playback starts automatically. When a battery-powered USB device like an MP3 player is connected to this unit, it also gets a charge, so it's ready to go with you when you exit the vehicle.

Input and Output
In addition to the iPod and USB support, you can use the DNX7140's front auxiliary A/V input to connect external audio/video sources like video game systems.

The unit also features an A/V output for sending content to an additional screen in the vehicle.

For audio output, the DNX7140 has three sets of 2V RCA pre-amp outputs for system expansion (in addition to the on-board 50W x 4 amplifier).

HD and Satellite Radio Ready
The DNX7140 allows you to enjoy SIRIUS (requires CA-SR20V cable + Sirius Tuner) or XM (requires KCA-XM100V + XM Mini Tuner) radio in your vehicle. Enjoy a multitude of channels featuring music, news, talk shows, sports, and traffic information with CD quality sound.

You also can add an HD Radio tuner. When you connect an HD radio tuner, features of the unit are disabled and changed to HD Radio tuner features.

Rear Camera Input
The DNX7140 is ready for a rear camera, allowing you to monitor behind your vehicle as you back up.

What's in the Box
Kenwood DNX7140, sleeve, trim ring, wiring harness, installation tools, installation manual, operation manual, warranty card.
